IMac 24 2008 Connecting External Display

[Bikkies]

In Australia, Brisbane. Thanx



[Bikkies]

So HDMI into the display? Still need a converter?



[Bikkies]

I’m a bit confused, the Thunderbolt 1 plug/socket is different to the mini DVI, is it the same as the mini display port?



[Bikkies]

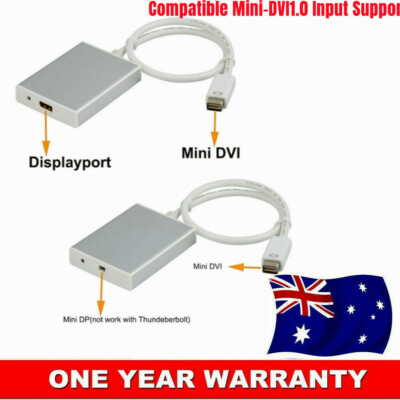

Mini DVI Cable to Mini DP/DP AdapterConverter Adapter Cable with Mini USB Audio | eBay

Note: 1) This Is a Mini Dvi Converter Cable,Mini Dvi Is Totally Different from Mini Dp 2)If the Display Is 27inch Apple Imac,the Input Resolutions Must Be Set at 1280x720 3)If the Display Is 24inch Apple Imac, the Input Resolutions Must Be Set at 1920x1200 4)This Adapter Cable Can Not Work with...

www.ebay.com.au

this looks like it’s got the right terminals, but says it won’t work on Thunderbolt- I’ve read a few items that says the same, others saying it will for video? Might be better off binning the old iMac.



[Nurgle2024]

In Australia, Brisbane. Thanx

I am in Ipswich... hahaha , small world. have you tried the Mac Flu at Mt Gravat Apple-Q. I used to go till I got so deaf I could hear what was going on. Leah has a carton of adapters he carries all the time.

regards

Sandy



[Nurgle2024]

I’m a bit confused, the Thunderbolt 1 plug/socket is different to the mini DVI, is it the same as the mini display port?

the first 3 are USB 1 & 2, they added lightening strikes to indicate thunderbolt, which is, I believe, compatible with Mini DVI port & plugs.



[Bikkies]

Just hooked up my MacBook Air (2010) to the thunderbolt screen & nothing, I’d say this won’t work. Maybe hook up a Mac mini as the external hard drive & connect the monitor by thunderbolt?



[Bikkies]

What’s Mac Flu? There’s a Computer Alliance at Mt Gravatt



[Bikkies]

The hard drive in the iMac is dead & I'm using an external hard drive via FireWire which works fine- could it be a solution to hook up a Mac Mini as the hard drive, and run the Thunderbolt monitor off the mini? It’s got a T’bolt port.



[Nurgle2024]

What’s Mac Flu? There’s a Computer Alliance at Mt Gravatt

sorry, autocorrect is stuffing me up again. also not all my fingers work after a power saw accident in 2009.

Mac Club..

Apple-Q Inc - Apple Users Group of Brisbane Apple-Q Inc

Apple Users Group of Brisbane

www.apple-q.org.au

I was one of the earliest members, and it is the oldest Mac Computer club in the world now.

regards
Sandy



[Cory Cooper]

Hi,

Sorry to clarify again, but the image of the port layout I posted is actually correct.

Here are the official Apple specifications for the two devices:
iMac (24-inch Early 2008)
Apple Thunderbolt Display

Officially, the Apple Thunderbolt Display system requirements state: "Thunderbolt-enabled Mac computer, including MacBook Air, MacBook Pro, Mac mini, and iMac". I believe this requirement is because the Thunderbolt cable in the wiring harness (which also has a MagSafe connector to charge portable Macs) connects to a Thunderbolt port on a Thunderbolt-equipped Mac to carry audio/video/data between the Mac and the display's built-in FaceTime HD camera/mic, speakers, and ports. You can connect peripherals to the display's ports, and the Thunderbolt port on the back of the display can be used to connect another Thunderbolt display, storage device, etc.

Yes, Thunderbolt 1 connectors are the same physical connector as a Mini DisplayPort, but the wiring/internals are quite different, because Thunderbolt supports more than just video. Unfortunately, I don't think there will be any combination of adapters that will allow connection to the Mini-DVI port on the iMac.

Hope that helps and definitely let us know if you find a workable solution!

C



[Nurgle2024]

well Ill be blowed, I stand corrected on the fire wire.. apologies. never heard of odd-ported Mac till now.

Sandy



[Bikkies]

Thanks Sandy, picking up a Mac mini today, I’ll swap it over with the external HD I‘m running, & hook the 2nd monitor up through the MM T’bolt port. Fingers crossed, might have issues with what it decides to be the primary display. Should be able to set it up through settings.



[Bikkies]

As expected, FireWire socket on the MM is different to the iMac. Now have to find an adapter or conversion cable. Getting as bad as bloody Microsoft.



[Bikkies]

Thunderbolt screen powers up off the MM. Found an FW 800-800 cable at Umart, grab it tomorrow morning- hopefully sorted.



[Bikkies]

Hooked up the FireWire, managed to do a data transfer from the iMac to the Mac Mini via it after a lot of fiddling about. Now both identical, I’ve got to work out how to make either the iMac or the Thunderbolt Display the second monitor. I was thinking of doing a full factory reset on the iMac, and see it it’ll boot up off the MM’s hard drive. This should be a lot easier than it is.
